伴随着MIPI Camera Service Extensions(CSE) V2.0规格加入到Introspect Technology的SV5C C-PHY/D-PHY Pattern Generator 和 SV5C C-PHY/D-PHY Protocol Analyzer中，我们正在帮助汽车行业验证下一代图像传感器和电子控制单元（ECU）中的安全性和功能安全特性。

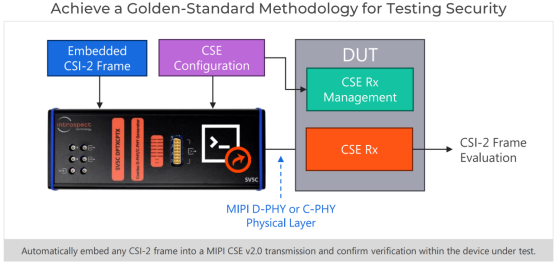

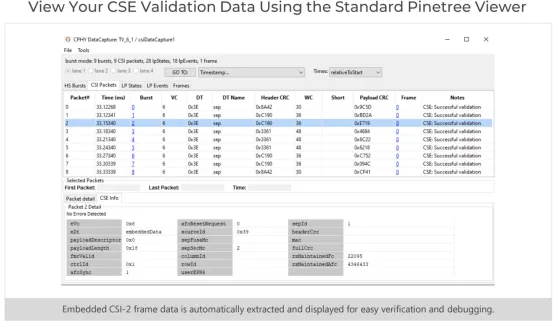

MIPI CSE分析许可（MIPI CSE Analysis License） 是一款专用的、硬件锁定（hardware-locked）的应用程序，运行于Introspect Technology的SV5C MIPI码型发生器和协议分析仪 产品上。该应用程序涵盖消息式和帧级数据服务协议，当其在SV5C MIPI发生器上运行时，能够生成加密数据包和有效载荷数据；当其在SV5C MIPI分析仪上运行时，则能够解码和验证封包 数据。因此，该CSE license功能代表了一个完整的、golden-standard的解决方案，用于在安全成像和视觉应用中验证Functional Safety（FuSa）和Security（Sec）数据保护服务功能。
◾User-Configurable CSE Management Options: Create any combination of security services orfunctional safety services.
◾CRC and Message Authentication Options: Generate and analyze compliant and non-compliant SEP and FSED packets.
◾Replay Protection: Generate unique frame counts and detect frame replay errors.
◾Verify Your CSE Framework: Create a Golden set of inputs and outputs for verifying the MIPI CSE framework.
◾100% Compatible: Use with the existing Introspect tools and workflow.
◾Automate Testing and Verification: Leverage Pinetree to automate tests and rapidly qualify all data services supported by the CSE specification.
